CAC-54-2 & CAC-291-1 Valve Plate and Cylinder Gasket Kit with 265-17

The purpose of this gasket kit is to act as a high-pressure seal to prevent air leaks between the crankcase cylinder and the Valve Plate assembly.

The original gaskets without the wire mesh tended to become over compressed and brittle over time and air leaks would develop reducing CFM delivery.

• Torque the head bolts in a standard staggered pattern 25, 30, 32.5 foot pounds Max as a final setting.
• Run the air compressor for 10 minutes without pressure building in the tank.
• Let the pump cool to ambient temperature and check torque one last time at 32.5 foot pounds.

Item Specifications:

• Air Filter Specifications:

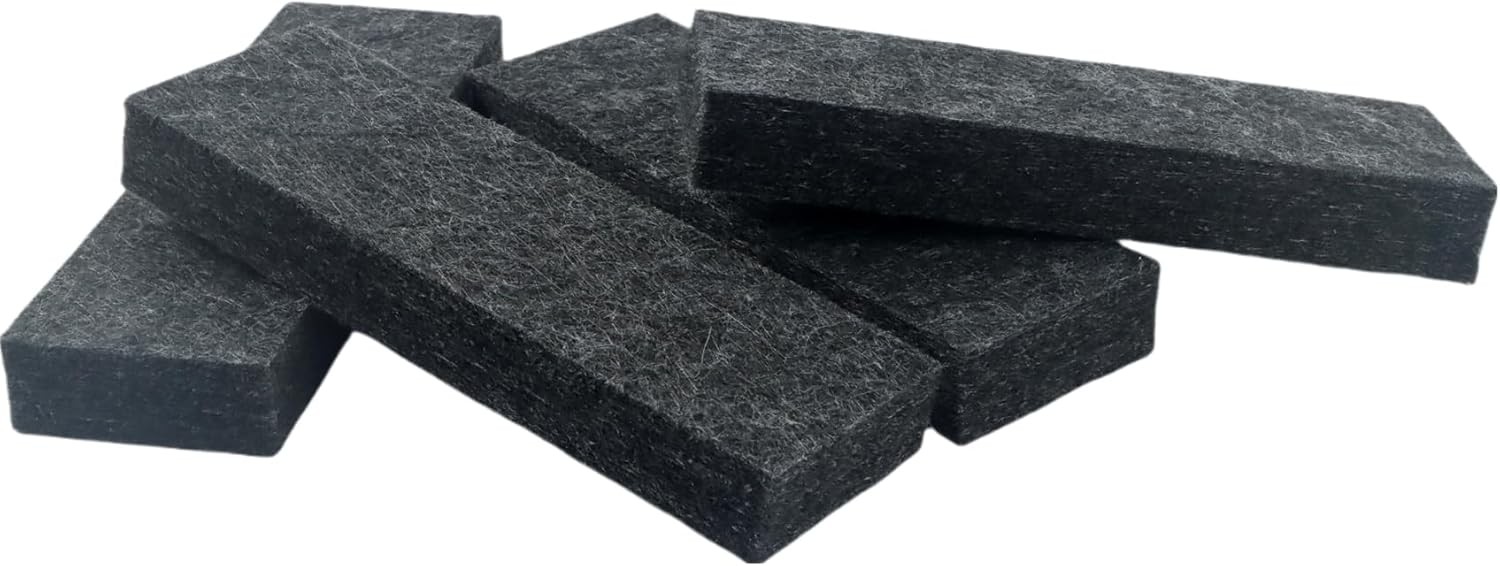

• Dimensions: 4-1/2" x 1-1/2" x 9/16"
• Material: Felt Fibers-Washable
• This new felt filter is to help filter out dust and debris from contaminating the compressor pump and should be washed or replaced regularly.
• Disconnect the power and bleed all the pressure from the air tank before servicing compressor head.
• Always Wear work gloves to protect your hands.
• Air Filter Part Number: 265-17, 26517, 265.17, 265 17
• Valve Plate Cylinder Gasket Specifications:
• Reinforced Graphoil and Wire Meshed Gasket.
• The purpose of this gasket is to act as a high-pressure seal to prevent air leaks between the crankcase cylinder and the Valve Plate assembly.
• The original gaskets without the wire mesh tended to become over compressed and brittle over time and air leaks would develop reducing CFM delivery.
• Gasket Part Number: CAC-54-2, Z-CAC-54-2
• Head Gasket Specifications:
• Reinforced Graphoil and Wire Meshed Gasket.
• The purpose of this gasket is to act as a high-pressure seal to prevent air leaks between the cylinder head and the Valve Plate assembly.
• The original gaskets without the wire mesh tended to become over compressed and brittle over time and air leaks would develop reducing CFM delivery.
• Head Gasket Part Number: Z-CAC-291-1, CAC-291, Z-CAC-291, CAC-291-1
